Nylon Core & Woven Nylon Belting

Nylon core belts are used primarily as power transmission belts. The thicker the nylon core, the greater the horsepower the belt can handle.

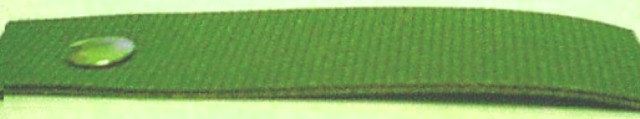

Nylon Core Green FL Nitrile x Green FS

Constructed of a nylon polymer core and nitrile rubber top cover and nitrile friction surface bottom, this belt is designed for use as power transmission belting on light-duty drives such as lathes & grinders.

CLICK HERE FOR SPECIFICATIONS #123

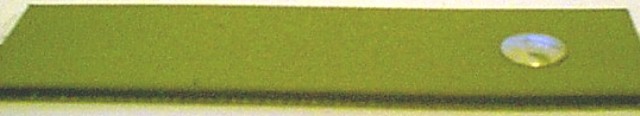

Nylon Core Fl x Fl Nitrile

The high-strength nylon core and nitrile rubber covers on both the top and bottom covers make this belt ideal for high speed power transmission on medium-weight drives.

CLICK HERE FOR SPECIFICATIONS #125-#126

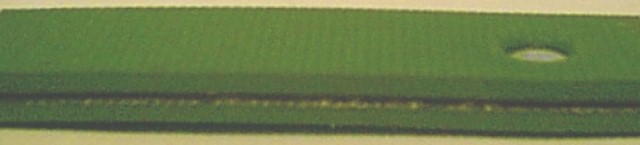

Nylon Core Green & White Fl x Fl Nitrile

Meduim-duty power transmission belts. Numbers 128 & 129 are often used on folder-gluers and #126a & #127 are found on heavier drives such as those on grinders, planers and tangential drives.

CLICK HERE FOR SPECIFICATIONS #126a-#127-#128-#129

Woven nylon is designed for use as a conveyor belt where high speeds, small pulleys, narrow widths or easy endless capabilities are required. For use as a power transmission belt on light-duty applications only.

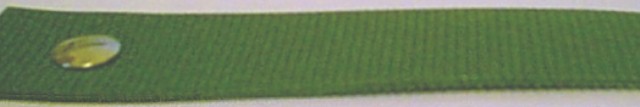

3 Ply Woven Nylon Green-- Bare x Bare

Designed for high speed operations and small pulleys. Commonly found in the printing industry where it is used as carrier, hold down and transfer tapes. Also used as spindle tapes in the textile industries. Operates on slider beds and works well as an accumulator belt.

CLICK HERE FOR SPECIFICATIONS #119

2 Ply Woven Nylon Green Polyurethane C x White Bare

Excellent slider bed belt with a higher-grip cover. Operates well on small pulleys and at high speeds. Used as carrier, hold down and transfer tapes in the printing industry, spindle tapes in textile manufacturing and in envelope, paper bag and notebook pad production.

CLICK HERE FOR SPECIFICATIONS #120

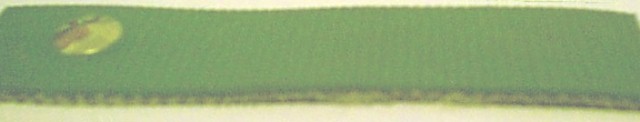

3 Ply Woven Nylon Green Fl Nitrile x Black FS

Belts commonly found in printing, paper manufacturing, corrugated box board, and textile industries. Both belts are suitable for slider beds, and #122 features a heavier top cover making it more abrasion resistant for more rugged applications.

CLICK HERE FOR SPECIFICATIONS #121-#122

Belt samples are available! Call for details.
