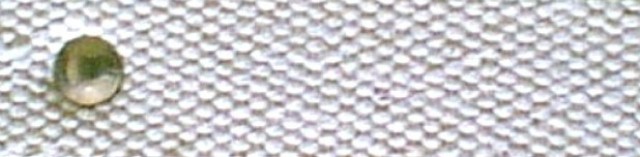

Baretop (Hot Stock and Water)

Bare duck surface down for lowest possible friction for slider bed use, and up for deflector bar applications; also ideal as slip-top belt for "stall" operations. Its true "hot stock and water" use is for conveying uncured rubber in tire plants. Construction is 1 ply of bare hard silver duck, and the rest of 28 oz. cotton.

CLICK HERE FOR SPECIFICATIONS #46-#47

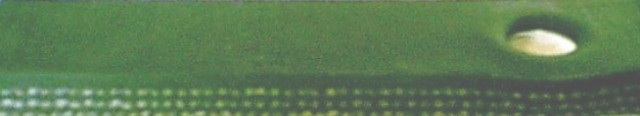

28 oz. 1/16" x FS - Smooth

Popular general-purpose utility belt featuring tough rubber top cover and friction surface bottom for slider bed use. Heavy duck plies give belt good rigidity and body. Commonly used in the lumber industry. Is often found as 4-inch-wide belts on V-guided APC conveyors.

CLICK HERE FOR SPECIFICATIONS #48

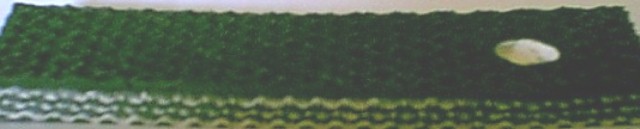

28 oz. 1/16" x FS - Pebbletop

This belt features the same rugged construction as #48 above, but has a "pebbletop" rippled textured pattern for increased traction. Is a popular replacement belt for 4-inch-wide V-guided APC conveyors.

CLICK HERE FOR SPECIFICATIONS #49

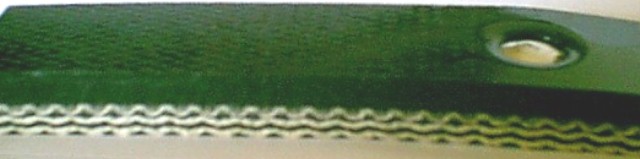

1/8" Urethane Cover x FS

This is a premium belt featuring a cast polyurethane cover 1/8" thick. Recommended where highly abrasive cutting action would destroy a rubber-covered belt in short order. Particularly suitable for wear pads, cutting blocks, stamping operations, die cutting, roof tile manufacturing and belt sanding units. Excellent for sharp steel parts and scrap. Oil, grease and chemical resistant. Available in various colors for special orders.

CLICK HERE FOR SPECIFICATIONS #50

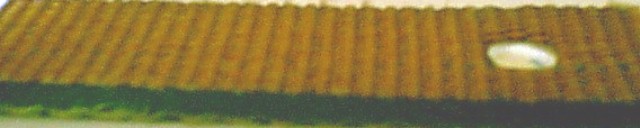

2 Ply Bare Bottom

Bare top and bottom make #51 an ideal belt for applications requiring a low coefficient of friction on both the top and bottom of the belt. Used for side loading, deflector bar and accumulatiing applications. Number 52 is an economical general purpose belt for package handling and parts conveying. Also popular for a variety of agricultural purposes.

CLICK HERE FOR SPECIFICATIONS #51-#52

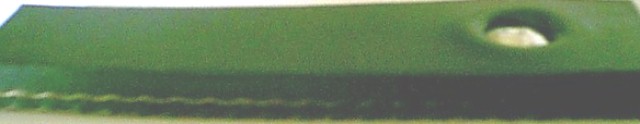

2 and 3 ply 1/8" x Bare MOR

For heavier-duty uses requiring a tough cover, yet low-friction bottom for slider beds. The belt is moderate oil resistant and commonly used in processing wood chips, paper and scrap.

CLICK HERE FOR SPECIFICATIONS #53-#75a

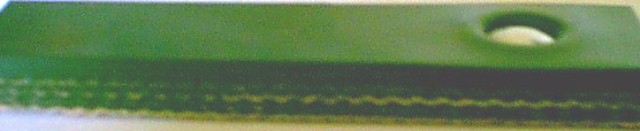

4 Ply 3/32" Smooth Nitrile x Bare

Standard smooth top belt used in the wood sander and metal finishing industries. Abuse-resistant top cover makes this belt ideal for oily cut and gouge applications.

CLICK HERE FOR SPECIFICATIONS #53a
