Incline Belting |
All profile specifications feature a deep tread, non-skid surface that enables product to be conveyed on inclines or declines. High grip impressions minimize or eliminate slideback of load. |

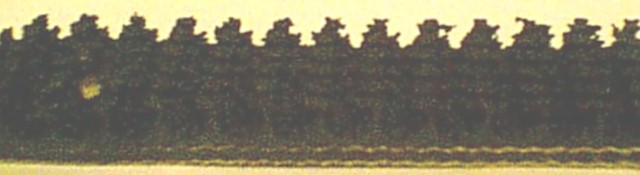

2 Ply 150 Black and Tan Roughtop Construction is two plies of high strength,all-synthetic fabricsand moisture . Very flexible, yet stretch resistantNON-MARKING.. Tan Roughtop is CLICK HERE FOR SPECIFICATIONS #54-#55
|
|

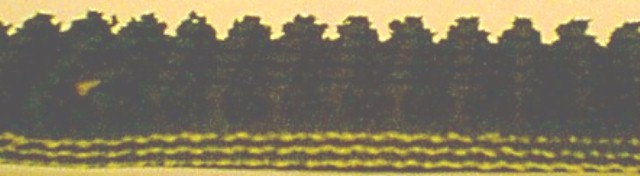

28 oz. Black Roughtop Long popular standard in the industry. Often used as pulley lagging. The 28oz. plies give a hefty appearance and cushioning effect. CLICK HERE FOR SPECIFICATIONS #56-#57
|
|

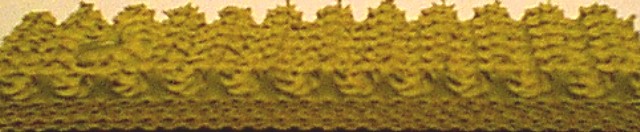

Tan Rubber and Pure Gum Roughtop Tan color is non-marking. The genuine gum is soft durometer for highest grab, steepest inclines and long wear when required. The tan rubber is more economical, yet highly serviceable. Four ply construction is popular for sanding machinery applications. CLICK HERE FOR SPECIFICATIONS #58-#59-#59a
|
|

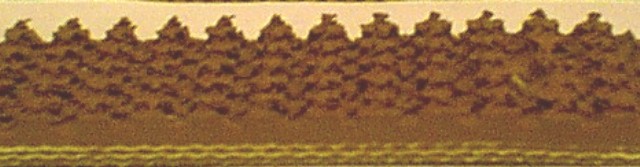

Poly Brown Nitrile Roughtop Nitrile construction resists oil, heat, grease and chemical exposure. Our specification is made of 135-lbs.-rated all polyester for high strength and stretch resistance, yet is very flexible for small pulleys. CLICK HERE FOR SPECIFICATIONS #60
|
|

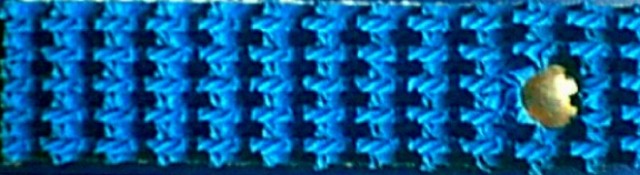

3 Ply Tan and Blue Carbox Nitrile Roughtop Carbox nitrile roughtop yields vastly longer service life than rubber roughtop. Is ideal where regular roughtop surfaces wear down quickly and must be replaced. Number 61 features a strong all-polyester carcass. while #61a is a cotton/nylon construction. CLICK HERE FOR SPECIFICATIONS #61&61a
|
|

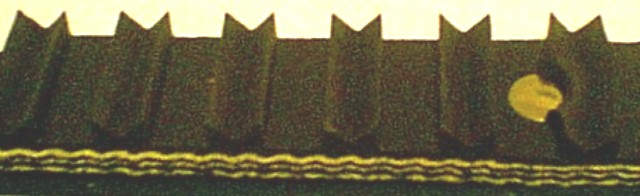

3 Ply Black V-Ridge Cross corrugated peaks are equivalent to small cleats; will convey on high incline. M-shaped ridges are soft, yet durable, and will self clean as they go around pulleys. CLICK HERE FOR SPECIFICATIONS #62
|
|

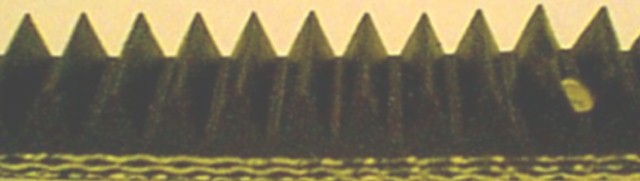

3 Ply Black Duralift Long-wearing solid inverted V-shaped ridges prevent back sliding on high inclines; self cleaning. Popular as case conveyor belt in bottling industry. CLICK HERE FOR SPECIFICATIONS #63
|
|
Belt samples are available! Call for details. |
