Incline Belts |

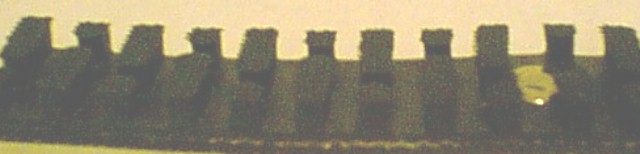

| 2 Ply Steepgrade Same conveying surface as 3 ply but high-strength, low-stretch synthetic carcass bare back for low friction on slider bed. CLICK HERE FOR SPECIFICATIONS#63a
|
|
| 3 Ply Black and Tan Gum

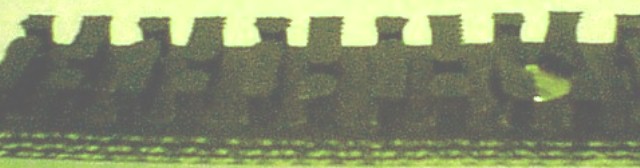

Steepgrade Features soft, oval-shaped nubs for gripping packages & product for very steep inclines. The molded projections prevent slip-back. providing a cushioning pocketing effect for all types and shapes of boxes, cartons, ect. The tan genuine gum specification is softer durometer for the VERY highest inclines. CLICK HERE FOR SPECIFICATIONS #64-#65
|
|

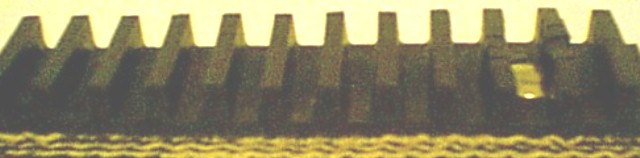

| 3 Ply Black Ribflex Top surface features soft flexible parallel ribs enabling it to convey on the steepest of inclines. The ribs are serrated to form thousands of high-grip fingers which self clean. Maintains full incline ability throughout life of belt. CLICK HERE FOR SPECIFICATIONS #66
|
|

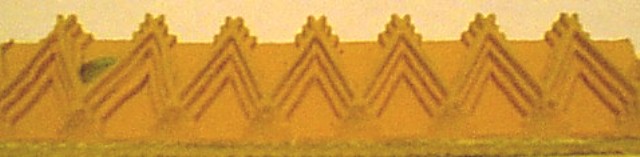

| Black and Tan Wedgegrip Constructed of plies of high-strength flexible synnthetic carcass & features a diamond-top surface molded in a diagonal rib design with unusually high coefficient of friction for conveying packaged & bagged goods up the VERY steepest of inclines.Non-marking. CLICK HERE FOR SPECIFICATIONS #67-#67A-67B
|
|

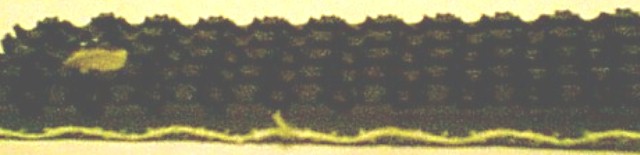

| PVC Roughtops Uni-ply construction and PVC vinyl compounds result to combine all the best properties for high traction incline conveying & best resistance to oils, greases, industrail chemicals, abuse and stretch. Green Supergrip is softer durometer for highest grab and steepest inclines. CLICK HERE FOR SPECIFICATIONS #68E
|
|
| PVC 100 Black Chevron
Top The herringbone pattern of alternating rows of soild PVC chevrons forms a cover highly capable of moving bulk, free-flowing materials such as grains, food stuffs, feeds & fertilzers up steep inclines. CLICK HERE FOR SPECIFICATIONS #88
|
|
| PVC Black Crescent Top Aggressive scoop pattern for high incline conveying. Crescent pattern creates hundreds of tiny "buckets" capable of conveying liquids along with soilds. Conversely, the belt can be run the opposite direction, and the upside-down crescent convey soilds while draining off liquids, Operates smoothly & quietly on return. CLICK HERE FOR SPECIFICATIONS #69aEb
|
|
Belt samples are available! Call for details. |
